Adjust valve clearance on No. If you are looking under the hood from the front grill on your left side are cylinders 1 2 and 3 in that order and on.
Datei Inline 6 Cylinder With Firing Order 1 5 3 6 2 4 Gif Wikipedia
All V6 Rangers have the same firing order yes the 29 30 and 40 of all years.
6 cylinder firing order. Figure 2 shows the 4-stroke engine cycle in a sequential pattern. This will be used together with figures 3a through 3e to explain the firing process. The crankshaft has six crank-throws placed at 120 degrees out of phase with one.
Read More Toyota Pick-ups Land Cruiser 4Runner 1989-1996 Firing Orders Repair Guide. This video demonstrates the firing order of most inline 6 cylinder enginesFiring order shown here is 1 5 3 6 2 4This firing order is used byToyota. What is the firing order of a six cylinder.
1 3 and 5 exhaust valves. Please check your particular engines firing. 6 piston is at TDC.
Firing orderinline six cylinderdistributor cap the firing order for 1992 ford f-150 inline six cylinder from the plug to the distributor cap. Some additional model info but the smaller and larger inline 6s all follow this pattern. 120 degrees of crankshaft rotation.
On later models the distributor is replaced with coil on a plug or similar systems but the firing order should be the same. Dont neglect the evident check up on the spark plug cable itself for cylinder amounts. 49 Zeilen Straight-six engines typically use a firing order of 1-5-3-6-2-4 which results.
V-6 or V-8 seek out the plug that may be nearest the front side of the engine in case the cylinder heads are even a different way of identifying 1 will likely be needed. 1 piston at TDC Compression stroke B. A--Fan End of Engine.
1-5-3-6-2-4 How to set Ingnition Timing. Most straight 6s use this firing order 2JZ RB26 Slant 6 etc. Firing Order Timing.
Find out how to access AutoZones Firing Orders Repair Guide for Mazda 323 MX-3 626 MX-6 Millenia Protégé 1990-1998 and Ford Probe 1993-1997. A number of firing orders are possible - assuming a 4-stroke the 2 most common firing orders are 1-5-3-6-2-4 and 1-4-2-6-5-3. Turn crankshaft 360.
As an example the well-known Chevrolet Small-Block engine has cylinders 1-3-5-7 on the left hand side of the car and 2-4-6-8 on the other side and uses a firing order of 1-8-4-3-6-5-7-21 Note that the order. These both avoid the rule of not firing adjacent cylinders consecutively but there are engines that break this rule - including some V12s which are basically 2 I6 engines on a common 120 degree crank. Animation of straight 6 cylinder firing order.
1 2 and 4 intake valves. Dont disregard the evident check up on the spark plug cable by itself for cylinder. 1992 ford f-150.
Comparing firing orders because the order will vary significantly with crankshaft design see crossplane. Firing order is 1-5-3-6-2-4. In a 6-cylinder engine with a firing order of 1-5-3-6-2-4 for instance the companion cylinders will be cylinders 1 and 6 5 and 2 and then 3 and 4.
The firing order is 1-4-2-5-3-6. The firing order is 1-4-2-5-3-6. This includes M20 M30 and other models of BMW engines.
A six cylinder in-line engine has a power impulse every 720 degrees6 ie. Intake compression power exhaust. FIRING ORDER 6-CYLINDER ENGINE.
Set the octane selector at 0 on the scale Figure Below Now attach a Neon Timing Light to the engine and run it at idling speed with light aimed at flywheel housing opening. V-6 or V-8 look for the connect that is nearest the leading from the engine in the event the cylinder heads are even a different method of determining 1 will be essential. Firing Order For 6 cylinder engine 1-5-3-6-2-4 Straight-6 Opel Omega A 1-6-5-4-3-2 GM 3800 engine 1-2-3-4-5-6 GM 60-Degree V6 engine 1-4-2-5-3-6 Mercedes-Benz M104 engine 1-4-5-2-3-6 Chevrolet Corvair 1-4-3-6-2-5 Mercedes-Benz M272 engine Volkswagen V6s 1-4-2-6-3-5 Toyota HZ engine.
Adjust valve clearance on No. 235 6 Cylinder Chevrolet Engine Inline 6 Firing Order 235 Chevrolet 6 Cylinder Engine Inline 6. 2 4 and 6 exhaust valves.
Moss Motors Help Center What Is The Firing Order Of My 6 Cylinder British Engine
Genboard Manual Inputtriggercamsync Vems Wiki Www Vems Hu

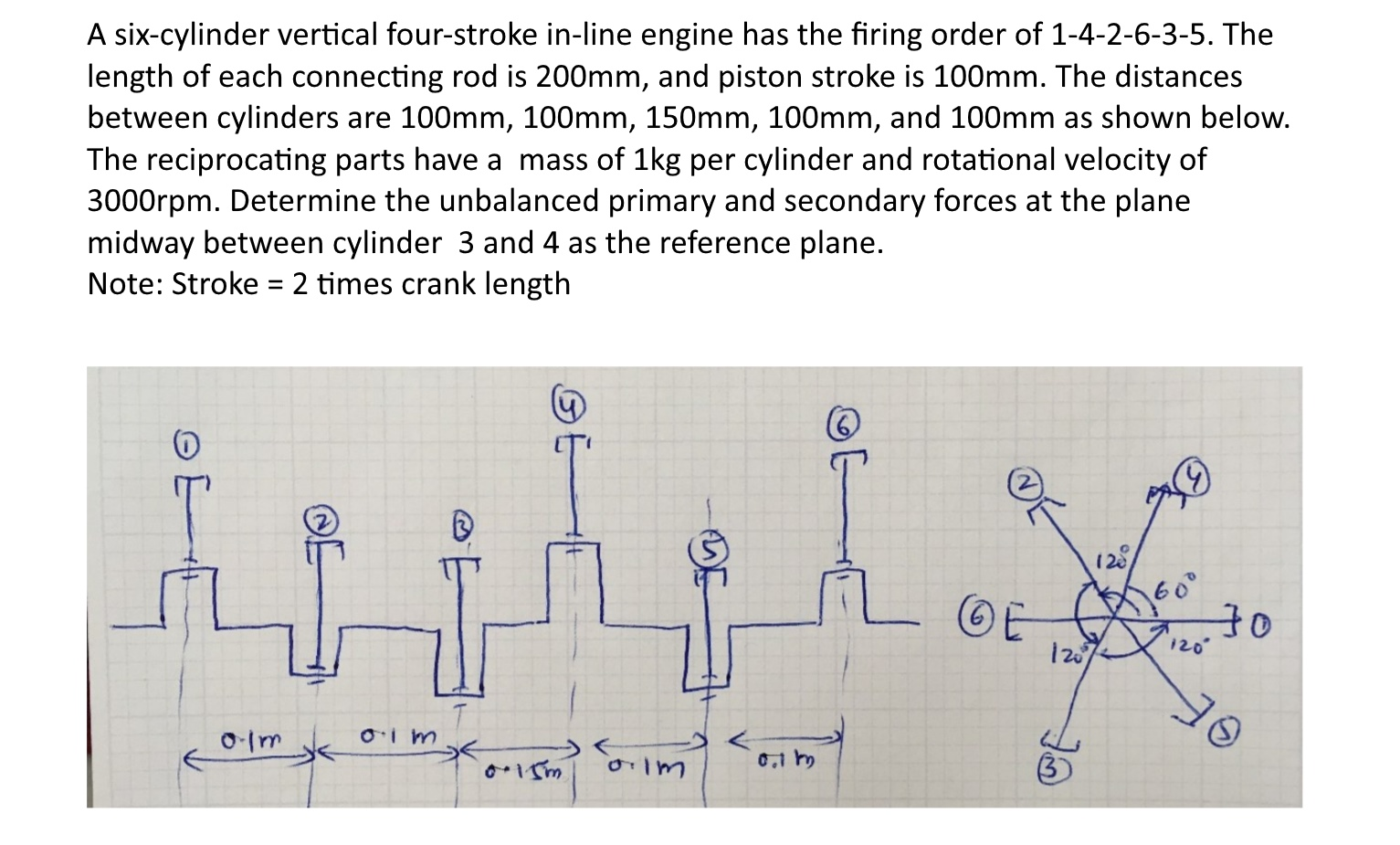

Solved A Six Cylinder Vertical Four Stroke In Line Engine Chegg Com
